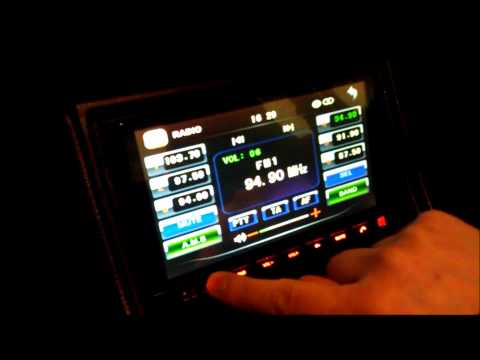

Here I'm using some of the basic features of the Erisin ES777A. The video is in 720p HD if you go and watch it on Youtube (or full screen). The list of programs and settings I have can be found in my earlier post Erisin ES777A configuration and software.
The feature I get most questions about is the so called Dual Zone (all of the Chinese manufacturers call it that on their car stereos), which basically means that you can have sound playing from another input - like the radio - while using the navigation app. Yes, this unit has that even though the manufacturer told me it doesn't.
I have unfortunately found a couple of bugs. The other one shows up on the video, in essence the Android tab/pad sometimes reboots when it's disconnected from the main unit while it's on. I believe this might have something to do with the acc power of the car or some faulty connection. Luckily this happens very rarely and when you disconnect the pad, most likely you are leaving the car anyways so it's not that big of an issue.
The other bug is that even more rarely (this has only happened to me twice in all of my time using the unit) the pad has some sort of connection issue with the screen and displays only a white screen. The problem occures only with the main unit - so the radio, DVD and other features accessible from the main menu give a white screen, but the Android has a normal picture. This problem goes away by rebooting the unit.
I'll try dismantling the unit sometime and see if there are some faulty or loose connections that could be causing this.
Otherwise it's pretty great and I'm quite anxious to try out the rest of the performance features once my other "club sporting" parts arrive :)
Here once again are the specs for the device from the manufacturer's website (complete with typos and such):
Key Features:
- ISO 2 Din Size , 7 Inch (16:9) wide screen Monitor
- HD Digital LCD Screen, Resolution: 800*RGB*480
- Super Sensitive Touch Screen Control
- Detachable Panel, after separation, one is Car Audio Player, one is Car PAD
- Google Android 2.3 Operation System
- 1GHz CPU, 512M RAM, very fast response
- Built-in 3000mA Battery, it can support longer work time
- Support WIFI & 3G Internet, you can connect a 3G USB dongle to fit 3G Card
- Support OTG Function, directly play HD Movie or transfer Data from USB Device, Hard Disk etc.
- Support HDMI Screen Output to HDTV
- 3.5mm Earphone Jack, Micro SD Slot, USB 2.0
- Host 1.1 Port can be connected with Mouse and Keyboard
- Built-in 3MP Camera, DV Recorder
- Support Google Maps online Navigating
- Support Android Maps Navigation, Free Map SD Card included as gift
- The PAD supports external memory card up to 32 GB
- 4GB ROM Flash, Could download more than 20,000 excellent software via Android E-market
- 3D Games, Support HD Video Formats
- Built-in Speaker and MIC
- Support HD Videos up to 1920*1080 pixels, Photo up to 4096*4096 pixels
- Change Wallpapers, support live image
- Portable, we provide one black leather Case as gift
- 4 x 50w Surround Stereo Output
- 3D Effect While change the mode
- Compatible with MP4 AVI WMA DVD VCD MP3 JPG… - 2 Button LED Light Color: Orange and Blue
- 10 Open Unit Logos for your Choice
- One Button for Blank Screen on main menu
- Support A2DP Bluetooth Function, can play stereo music through Bluetooth
- Radio Tuner, 30 Preset Radio Stations, with RDS function
- Built in VHF/UHF TV Tuner, 100 Preset TV Stations
- USB Port and SD Slot, Support USB Stick and SD Card up to 8 GB
- Touch Music Title to play directly, Select Title with small Keypad
- Support Steering Wheel Control, support Subwoofer Audio Output
- Support Rear-view Camera Video Input, support iPod Audio input
- Built-in Microphone, Electronic Anti-Shock
- Back Sight Control, Hand Brake Control, Remote Control
Description of Detachable Panel -- Car PAD/MID
General
-Operation System: Google Android 2.3
-CPU: Telechips TTC8803, 1GHz
-RAM: DDR III 512M
-ROM FLASH: 4GB
-LCD: 800*RGB*480 HD Screen
-Extended memory card: Up to 32GB SD/TF card
-G-SENSOR: 3 axis acceleration sensor and 3D IC hardware acceleration, could realize dynamic 3D game and 3D interface
-WiFi: Built-in High performance, low power consumption, WiFi:802.11 b/g
-3G: 3G Universal Drive Support external USB Dongle: WCDMA,EVDO,TD-SCDMA
-Camera: Built-in 3MP Camera, DV Recorder
-Speaker: 1pc 1W,80hm
-Battery: 3000mA / 3.7V Li-Battery
-Microphone: High sensitivity input, right&left channel
-Size: 170*103*15mm
-Weight: 415g
-Languages: Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and more customer-made languages
Slot
-HDMI: Standard, Mini Port, Support DMI1.3; Support screen output
-OTG: Directly play HD movie in Hard disk, digital camera, mobile phone, U Disk and Card reader; Transfer data freely, connect with Printer and other OTG functions
-USB: USB2.0 High Speed
-HOST: HOST 1.1, could connect with mouse, keyboard, U Disk and other peripheral equipment
-SD/TF: Support multimedia Card or Maps Card
-Earphone: 3.5mm Earphone Jack+CVBS output
-Charge: Small charger slot, DC 9V input
Audio
-Format: MP3, WMA, MP2.OGG.AAC.M4A.MA4.FLAC.APE.3GP.WAV etc.
-Record: Format: MP3.WMA
-Other: LRC synchronized display; ID3 search; Search by files; Album pictures; User-defined audio effect
-Audio IC: Top Global Cirrus IC, independent audio decoding
-SNR: Noise ration: ≥90dB
Video
-Format: Support AVI(H.264.DIVX.DIVX.XVID).rm.rmvb.MKV(H.264.DIVX.DIVX.XVID).WMV.MOV.MP4(H.264.MPEG.DIVX.XVID).DAT(VCD format).VOB(DVD format).PMP.MPEG..MPG..FLV(H.263.H.264).ASF.TS.TP.3GP.MPG etc, ≥30 formats, playing internet video directly (while downloading)
-Play: Up to 1920*1080 pixels. 30Mb. Fluent play without light spot
-Video output: HDMI 720P to 1080P, full HD output and common video output (AV)
Description of Car Multimedia System
General
Power Supply: DC 12V (Allowable range: 10.8-14.5)
Max Current: 10A
Install Size: 180mm*160mm*10mm
Package Size: 310mm*310mm*170mm
Gross Weight: 4.0kg
Net Weight: 3.5kg
Display
-Screen type: 7 inch touch screen
-Resolution: 800 * RGB * 480
-Built-In LC Clock Display Function: Yes
-Built-in Accelerator: Yes, very fast response
-Touch one button to display black: Yes
-Digital or Analog: Digital Touchscreen, very vivid
Setup
-Camera Setup: Normal/Mirror
-Bell Setup: Button Voice on/off
-Button Light choice: Red/Blue
-Menu Language Setup: English/Chinese
-TV Setup: PAL: I/DK/BG,NTSC:PAL M/PAL N, SECAM;DK/BG
-Steering wheel Control Setup: Yes
-Touch screen calibration: Yes
-Radio Setup: Europe/America 1/America 2/Japan/Russia
-RDS Setup: on/off
-Time Setup: Yes
Panel
-Viewing Angle adjustable: No
-Detachable control Panel: Yes, after separated, one is PAD, one is Car Audio Player
-Fluorescent Button: Yes, red or blue LED Light
DVD
-Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
-OSD/Audio/Subtitle Language: English/Italian/French/Spanish/Portuguese/German/Latin
-Position of Disc Slot: Behind the detachable Panel
-Auto-Save Function: Yes, expediently watch all kinds of disc continuously
Bluetooth
-Version: V2.0
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Built-in microphone: Yes
-Call Records: Dialed Call, Received Call, Missed Call
-Bluetooth Music control: Yes, play/pause/previous/next
TV
-Digital or Analog: Analog TV Tuner
-TV System: SECAM/NTSC/PAL
-Preset Stations: 100
-TV Antenna Jack: Yes, on the back
Radio
-AM Frequency Range: 522-1620KHz
-AM Increment: 9KHz
-FM Tuning Range: 87.5-108MHz
-FM Increment: 0.05MHz
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)
USB
-Position: On the Back
-Capacity: 8GB
-Select Title with small Keypad: Yes
-Touch music title to play directly: Yes
SD
-Position: Behind the detachable Panel
-Capacity: 8GB Micro SD/TF Card
-Select Title with small Keypad: Yes
-Touch music title to play directly: Yes
Input
-AUX Video In: One
-Rear-Camera Video In : One
-Ipod Audio In: One
-AUX Audio In: R/L
-TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: FR/FL/RR/RL
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One
Control
-Remote Control: Yes
-Back Sight Control: Yes
-Auto Antenna Control: Yes
-Hand brake Control: Yes
-Steering Wheel Control: Yes
-iPod Control: Yes
-Headlight Control: Yes
-Auto Mute Control: Yes
Description of Both
Accessories
-User's Manual in English: Two
-Remote Controller (Battery excluded): One
-Power Cable: One
-USB Cable: Two
-USB OTG Cable: One
-IPOD Cable: One
-TV Antenna Adapter Cable: One
-Steering Wheel Key Extension Cable: One
-RCA Cable: Two
-Wall Charger for PAD: one
-Leather bag for PAD: One
-GPS Antenna: One
-4GB Micro SD Card: One
-Touch Pen: One
-Install Fittings: One
